King Post products

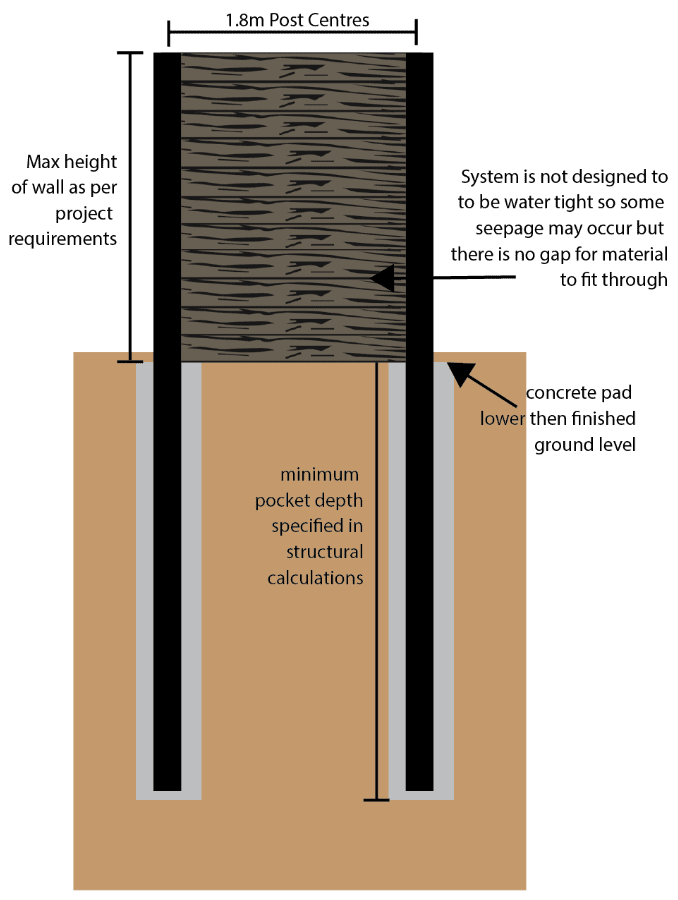

Our king post retaining wall system can achieve retained heights of up to 4.5m, with structural calculations for all load case scenarios.

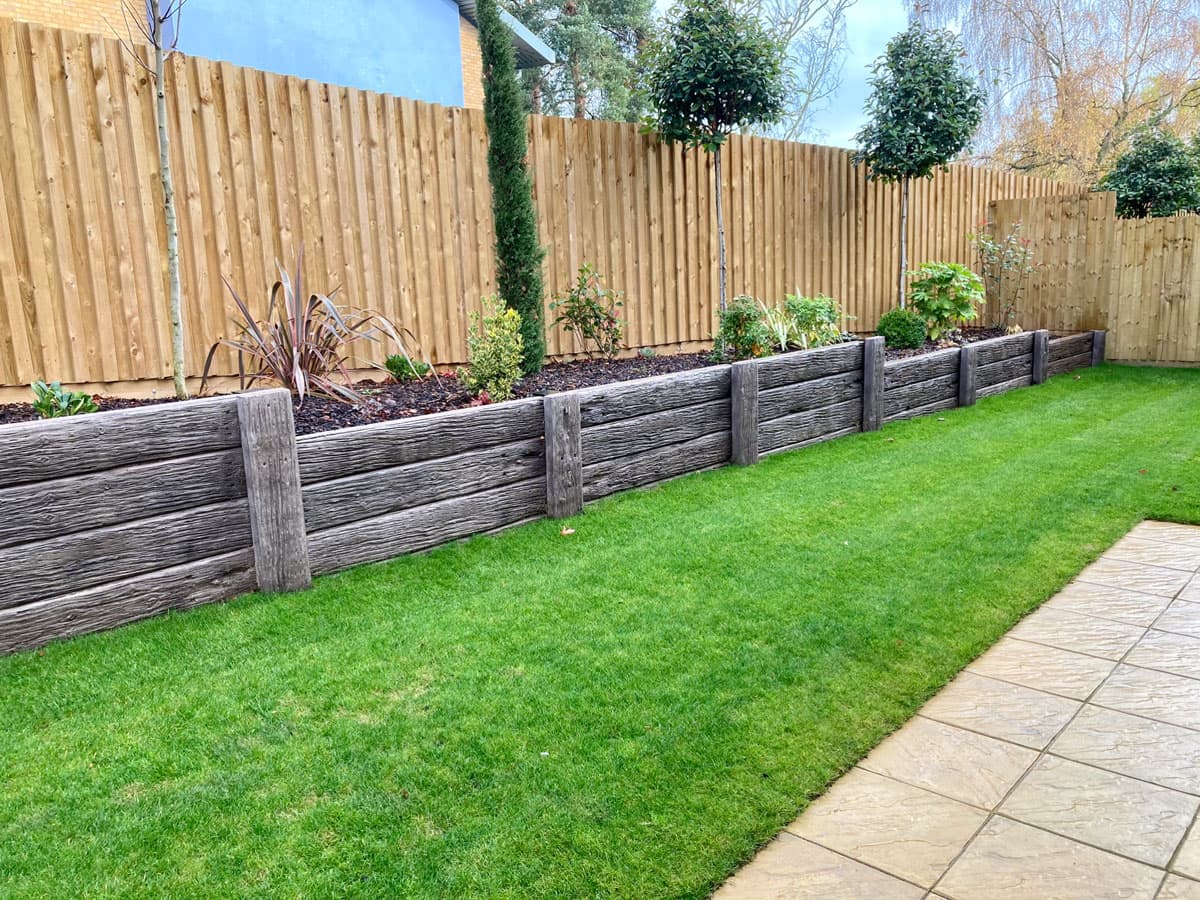

Team Elite manufactures timber & slate effect concrete panels, offering a solution for a range of projects, complimenting any landscape.
Timber effect panels are a traditional dark brown, while Slate and Smooth effect are a realistic slate grey finished in a gloss sealer. Both are coloured throughout the product and re-enforced.
The Steel beams can be hot dipped galvanised to prevent rust. Galvanising offers a modern style wall boasting a lifespan of 60 years.
Alternatively Steel beams can be galvanised and finished in Matt Black paint for a softer, more natural effect.
Being slimline, these beams take up minimal room maximising valuable space.

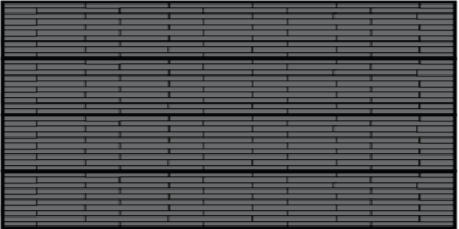

Slate effect

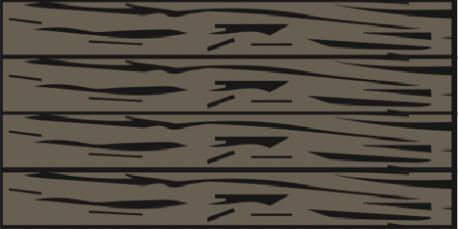

Timber effect
Specifications
Individual sleeper
Slate effect
Timber effect
Specifications
- Size - 1750mm x 230mm x 75mm
- Reinforcement - 2 x 10mm bars
- Max retained height - 1.38m (6 Sleepers)
- Weight - 75/80kgs
Sleeper Panel type 1
Slate effect
Timber effect
Specifications
- Size - 1750mm x 460mm x 125mm
- Reinforcement - B1131 mesh
- Max retained height - 4.5m
- Weight - 250kgs
Sleeper Panel type 2
Slate effect
Timber effect
Specifications
- Size - 1750mm x 920mm x 125mm
- Reinforcement - B1131 mesh
- Max retained height - 4.5m
- Weight - 500kgs
Complete King Post Wall solutions
Design, manufacture and installation of King Post retaining walls that combine structural performance, aesthetic appeal, and long term reliability.
